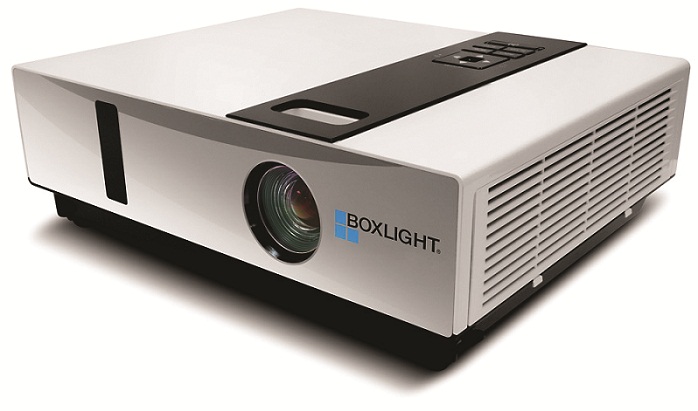

SeattleX22N

KEY FEATURES
Designed for tough environment
Side Changing lamp/filter
Quick on/off
With antitheft feature
Five auto features and seven display modes
Built in speaker
Logo capture
Image Freeze function
Built in network control RJ 45
Closed caption
Multi language OSD

TECHNICAL SPECIFICATIONS
Technology0.63 3″ LCD
Brightness2200 Lumens
Native Resolution1024×768 XGA
Supported resolutionup to 1600×1200 (UXGA)
Brightness Uniformity80%
Projection MethodDesktop front/rear, ceiling front/rear
Colours16.7 million true colours
Contrast Ratio15000:1
Aspect RatioNative 4:3 Compatible 16:9
Image Size40″-300″
Projection Distance5’to30′
Throw Ratio1.45-1.73 (manual zoom and focus)
Lens ShiftNA
Zoom Ratio1.2:1
Digital Zoom4x
Keystone CorrectionVertical +/-30 degrees
Audio Output1x8W mono
Lamp200W
Lamp Life5000/6000hrs (Standard/economy)
Remote ControlFull Function IR Remote with laser pointer
Noise Level>33db
Power SupplyUniversal AC input 100-240V at50-60Hz
Power Consumption310W / <2.6W standby mode
ConnectivityVGA/HDMI, DVI-I Composite Video 2RCA (R/L) audio in , Component Video, S video, audio 3.5mm X2, LAN RS-232 USB port for mouse control, VGA and 3.5mm outputs
Computer CompatibiltiyPC MAC
Video CompatibilityEDTV (480p) HDTV (576i/p,720p,1080i) NTSC/NTSC 4.43 PAL B/G/H/I/M/N60 SECAM
Service and Network ControlRS232 RJ45
Weight3.2 KG
Dimensions12.8″x10.24″x3.9″
SecurityKensington Lock port Keypad Lock, Anchor security bar
Standard accessoriesAC Power Cord, VGA Cable, Remote Control User manual
