OUTWRITE2

TECHNICAL SPECIFICATION
Model	OutWrite2 1.4 / OutWrite2 .5
Throw Ratio	1.4:1 / 0.5:1
IR Band	940 nm
Resolution	2560 x 1920
Frame Rate	60 FPS
Input Port	Micro USB (B type) (USB1.1 / USB2.0)
Calibration	Manual calibration with LightPen or interactive wand
Calibration Topology	4-Point
Driver	Auto install
Power Consumption	USB wire (5v, 500mA) direct use
Image Size	up to 120” diagonal
Dimensions (W x H x D)	4.8” x 1.1” x 3.2” / 122 mm x 28.2 mm x 81 mm
Weight	0.3 lbs / 0.142 g
SYSTEM REQUIREMENTS
CPU	Core duo or above
RAM	Size 512MB or above
Minimum Free Disk Space	100MB
INTERACTIVE DRIVER SUPPORT
Windows	Microsoft Windows XP / Vista/ Windows 7 (32/64 bit) or above
MAC	MAC OS X v10.5 or above
Linux	Linux OS Ubuntu 10.04, Debian 5.0, and Suse 11
PACKAGE
Box Dimension	17” x 6.1” x 2.8” / 43 cm x 15.5 cm x 7.1 cm
Weight	1.4 lbs / 600 g
Standard Accessories	LightPen, interactive wand, 4.5M USB cable, installation guide,user manual (CD), ceiling mount kit
Optional Accessories	Micro USB cable, 16ft USB extension cable, replacement pen,replacement wand, soft carry case for pen and wand

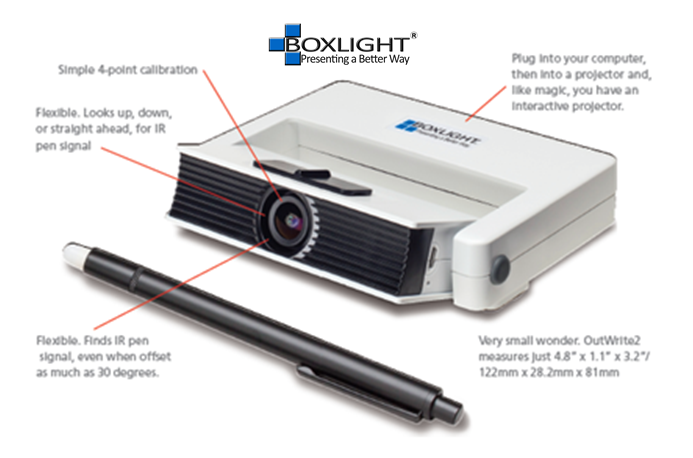

KEY FEATURES
Two Variants BoxLight Outwrite1.4 (Throw Ratio 1.4:1)for Long Throw Projector and BoxLight Outwrite2 0.5 (Throw Ratio 0.5:1)for Short Throw Projector
Has CMOS camera
Turn any projector in to an interactive projector with this simple external add-on
Any surface can be upgraded to any interactive surface
Plug and Play for convenient installation (auto driver install)
Simple 4-point calibration done in blink of an eye
Connect USB cable and install driver directly from device
Amazingly compact: 4.8in x 1.1in x 3.2in /122mm x 28.2mm x 81mm. Only 142 gm in weight.
IR Band 940 nm. Supports interactivity up to 110” diagonally
Works on 60 Frames per second
Resolution 2560×1920
Can be offset as much as 30 degrees from the centre of screen essentially eliminating shadowing issues.
